Description

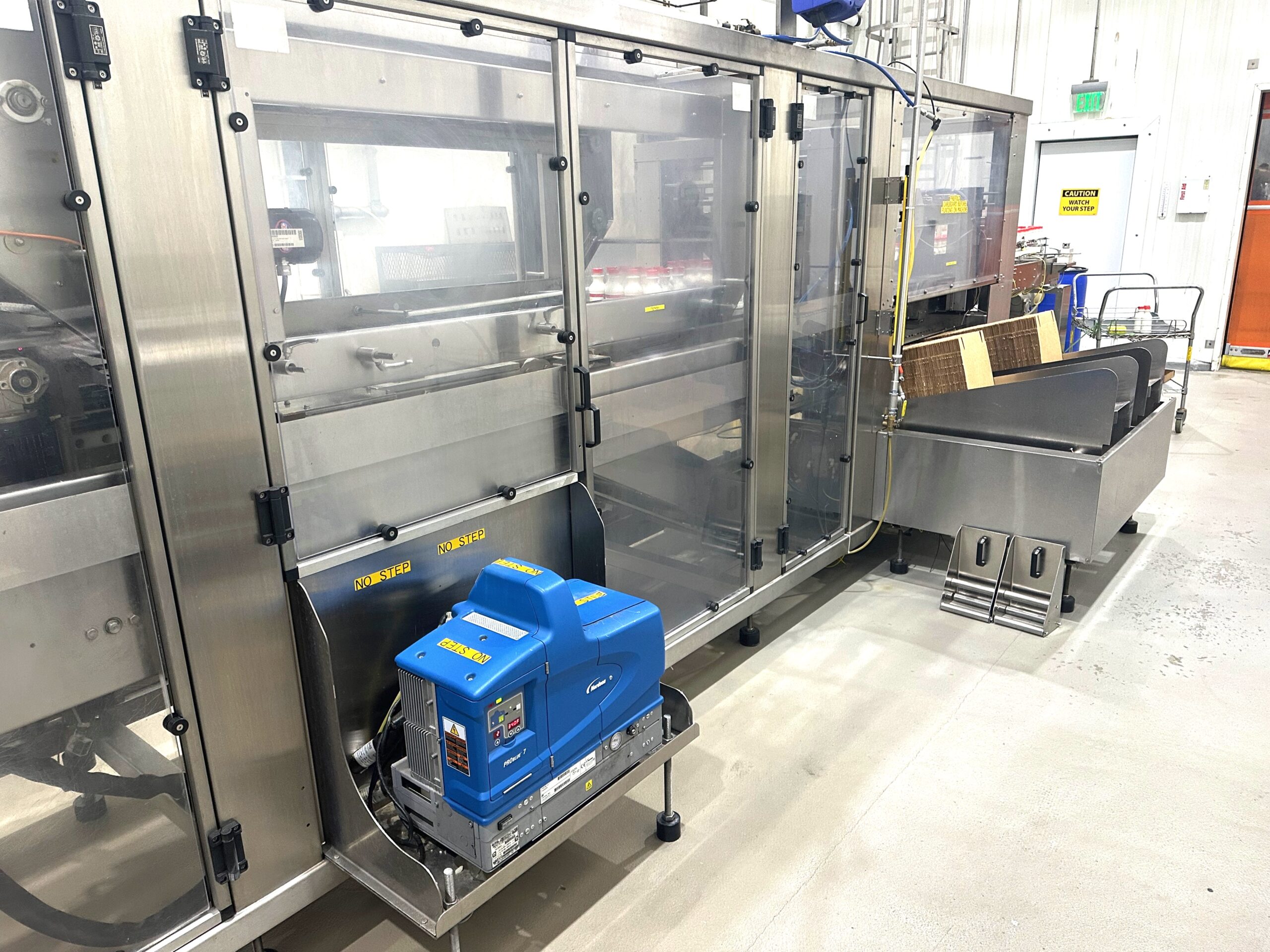

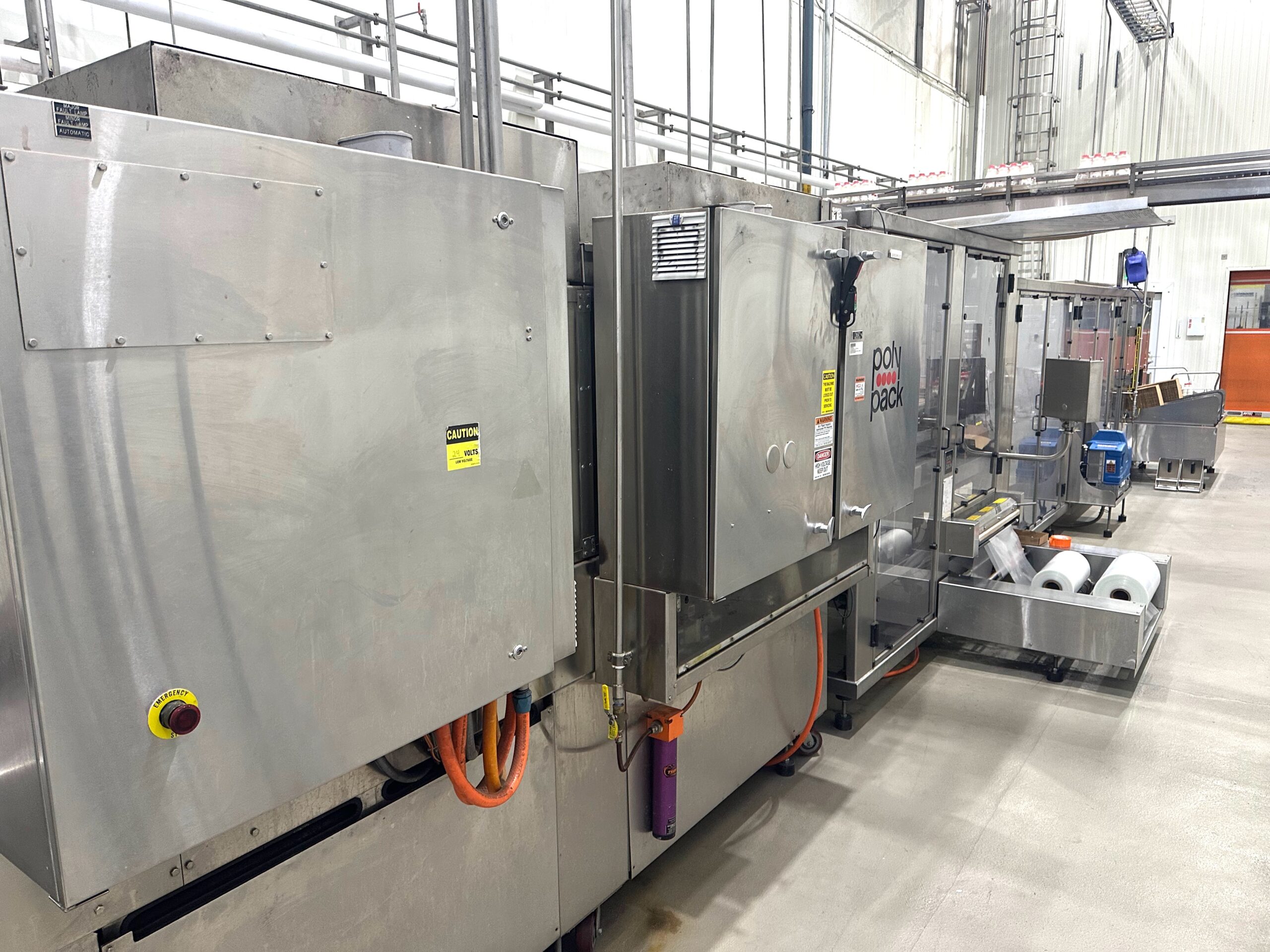

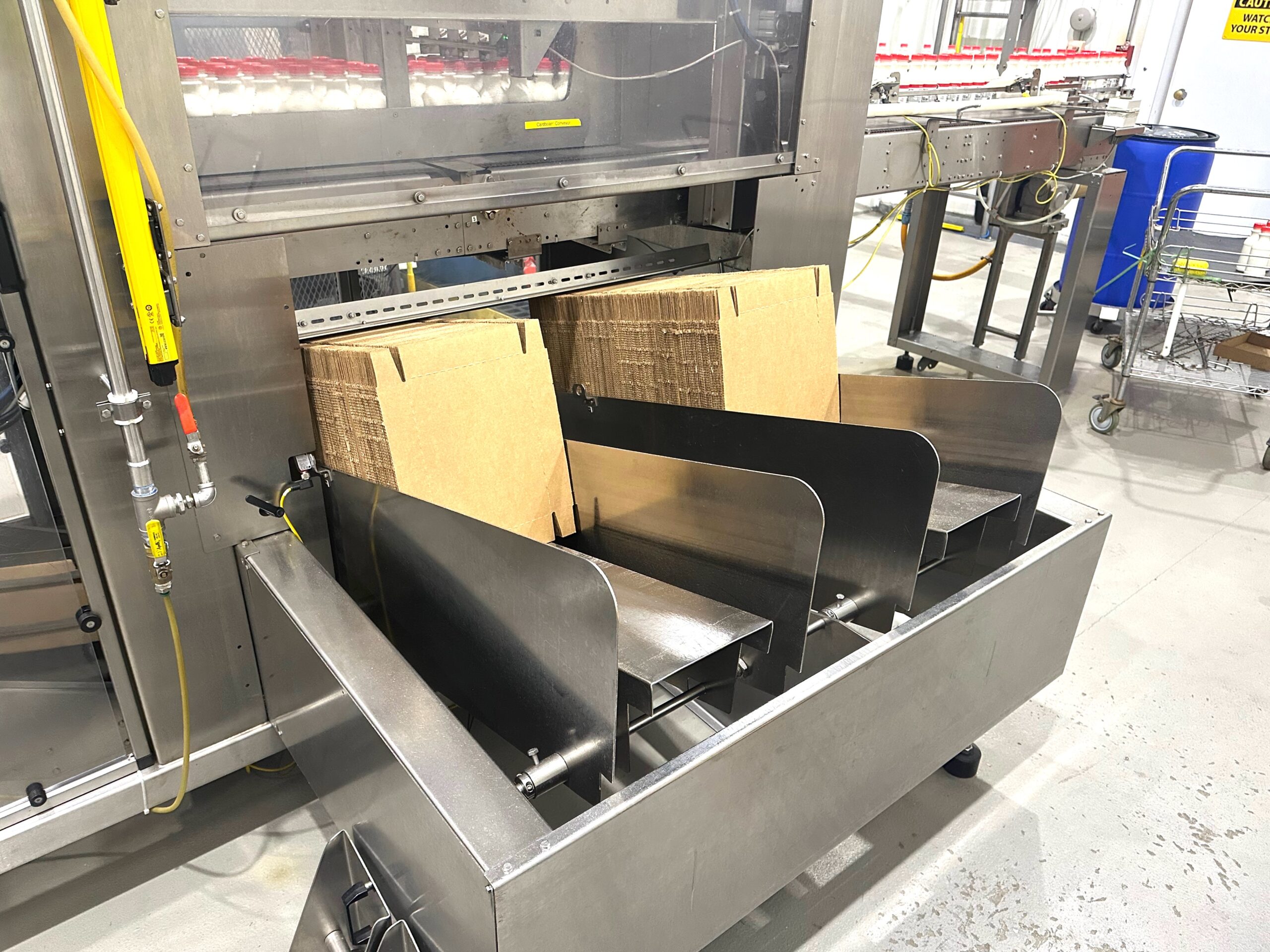

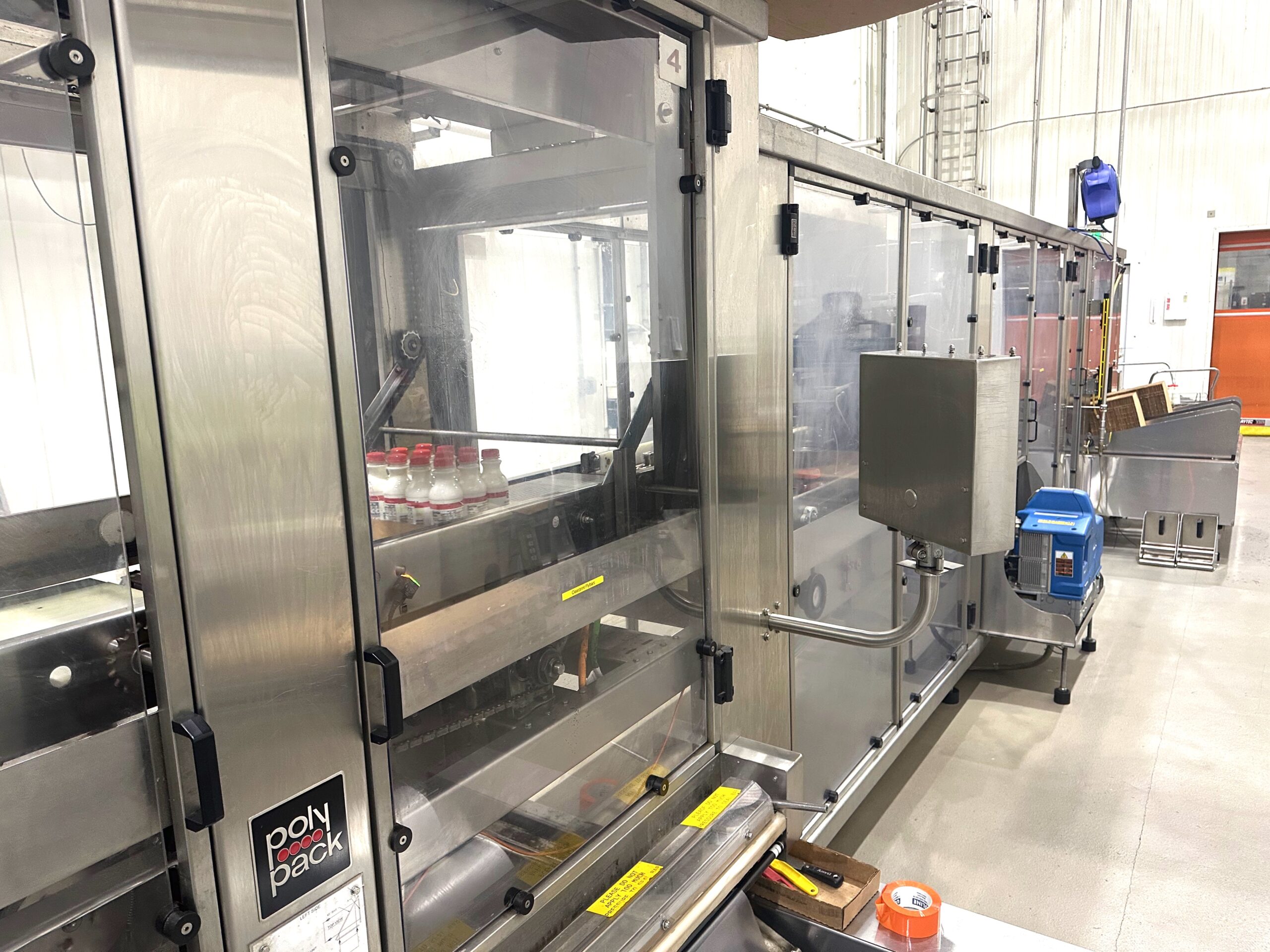

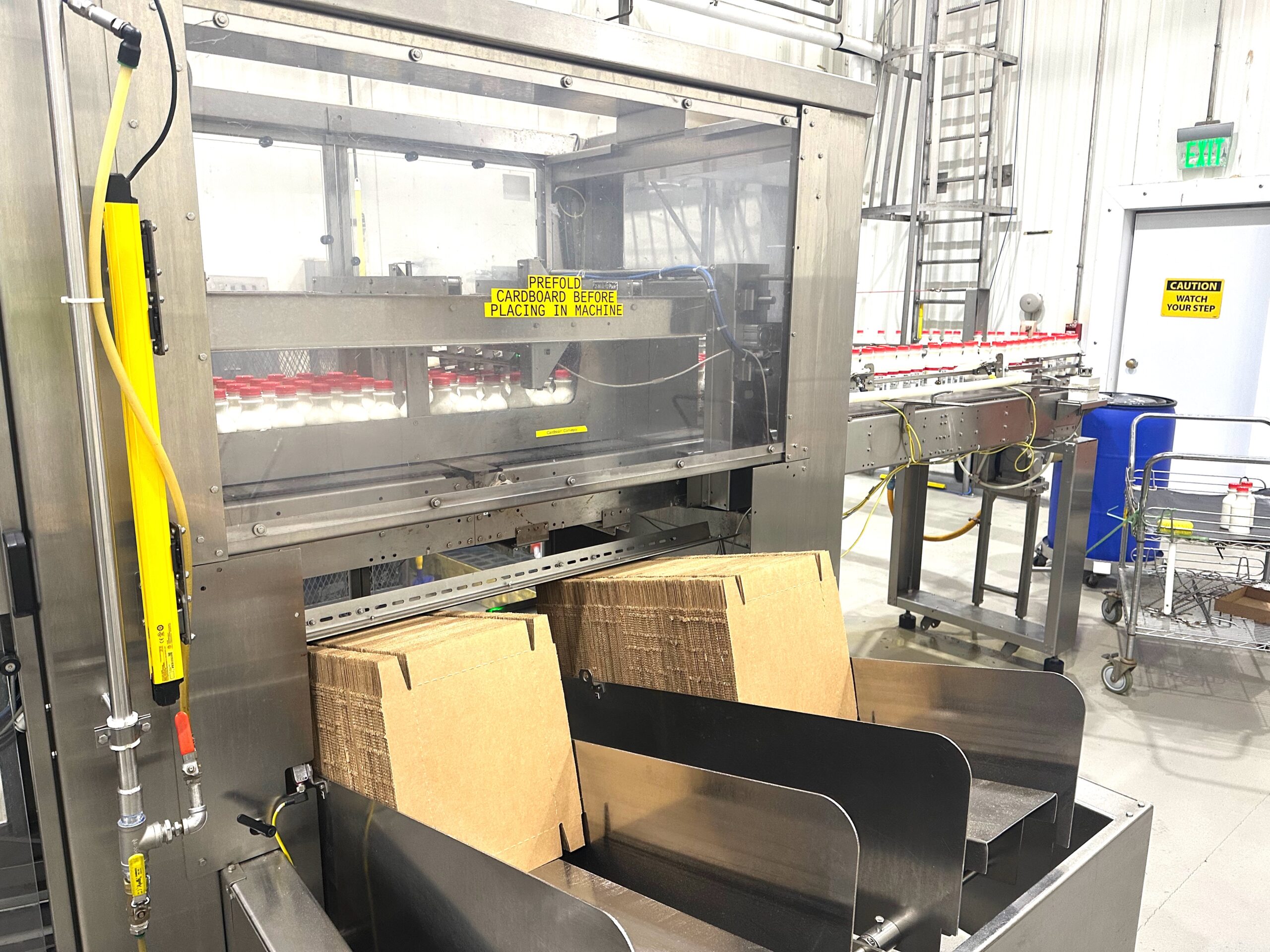

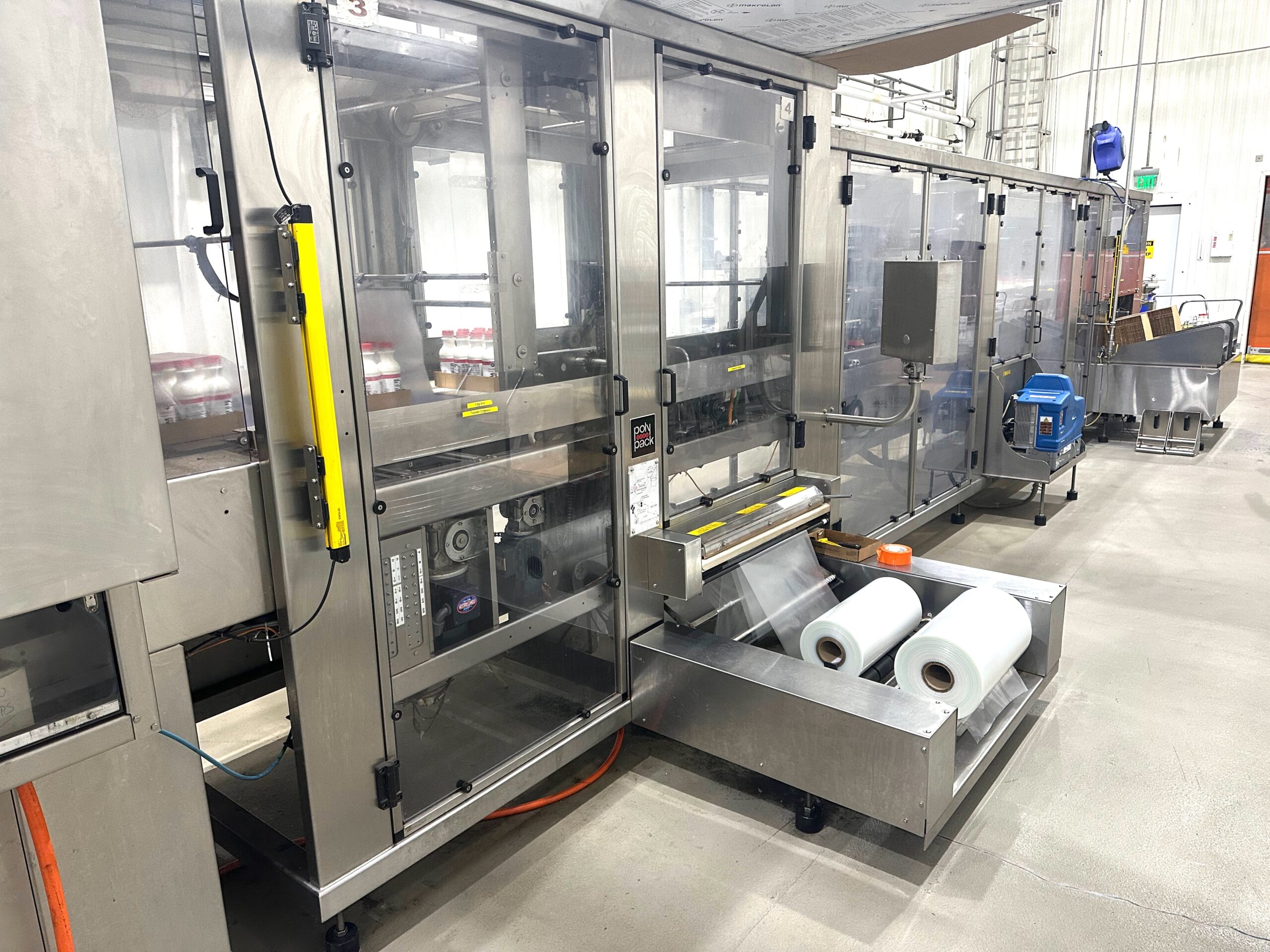

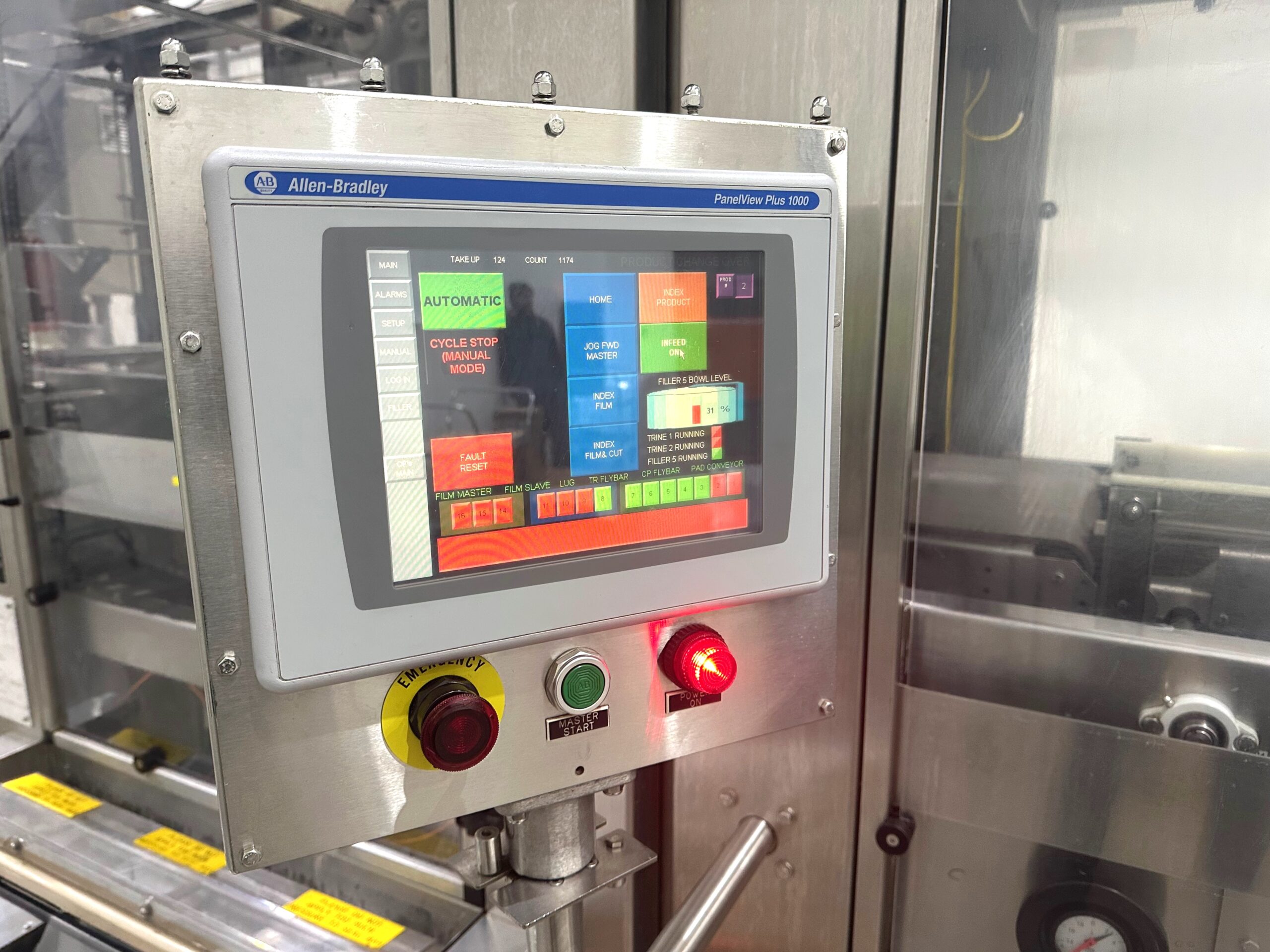

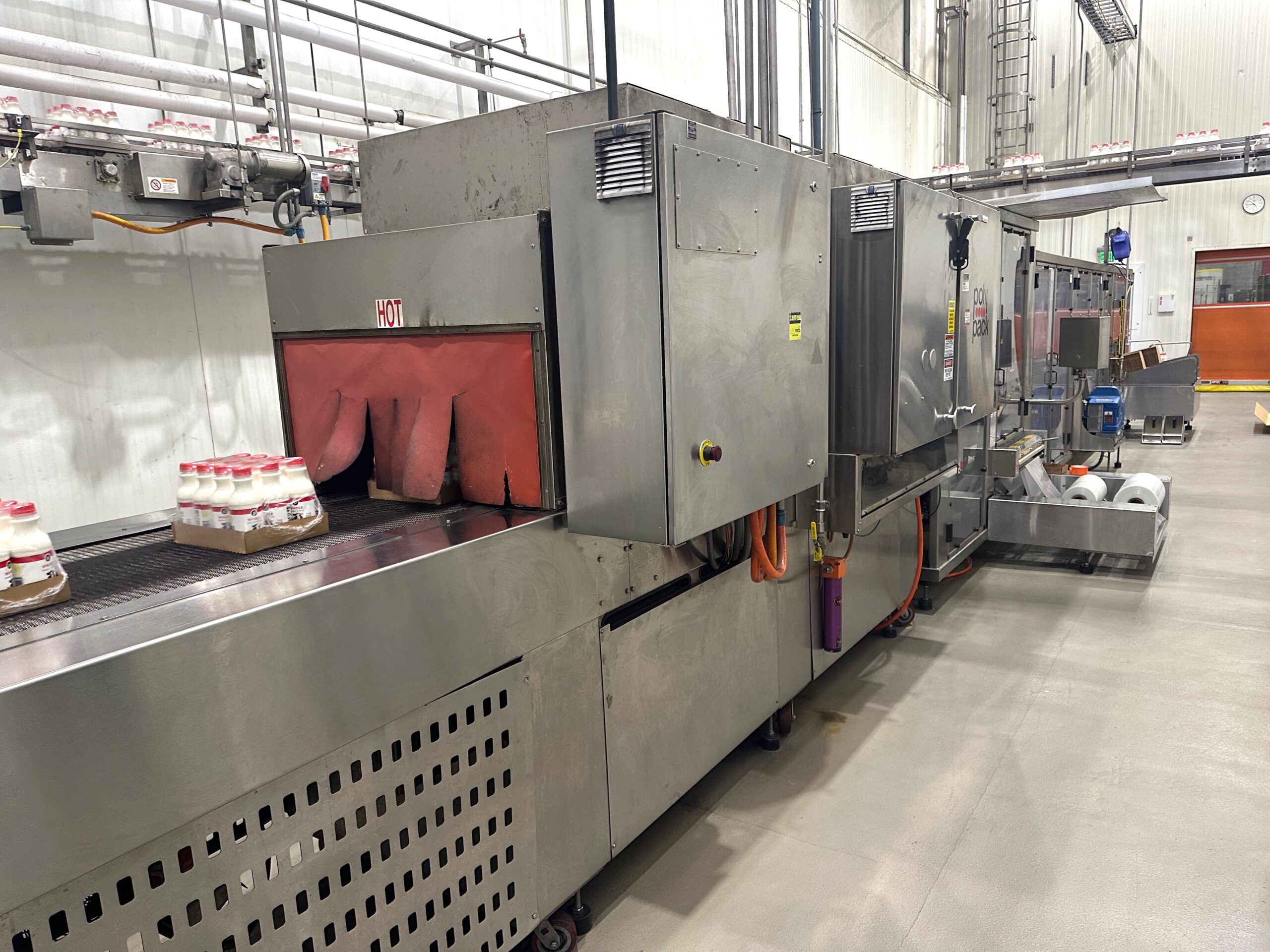

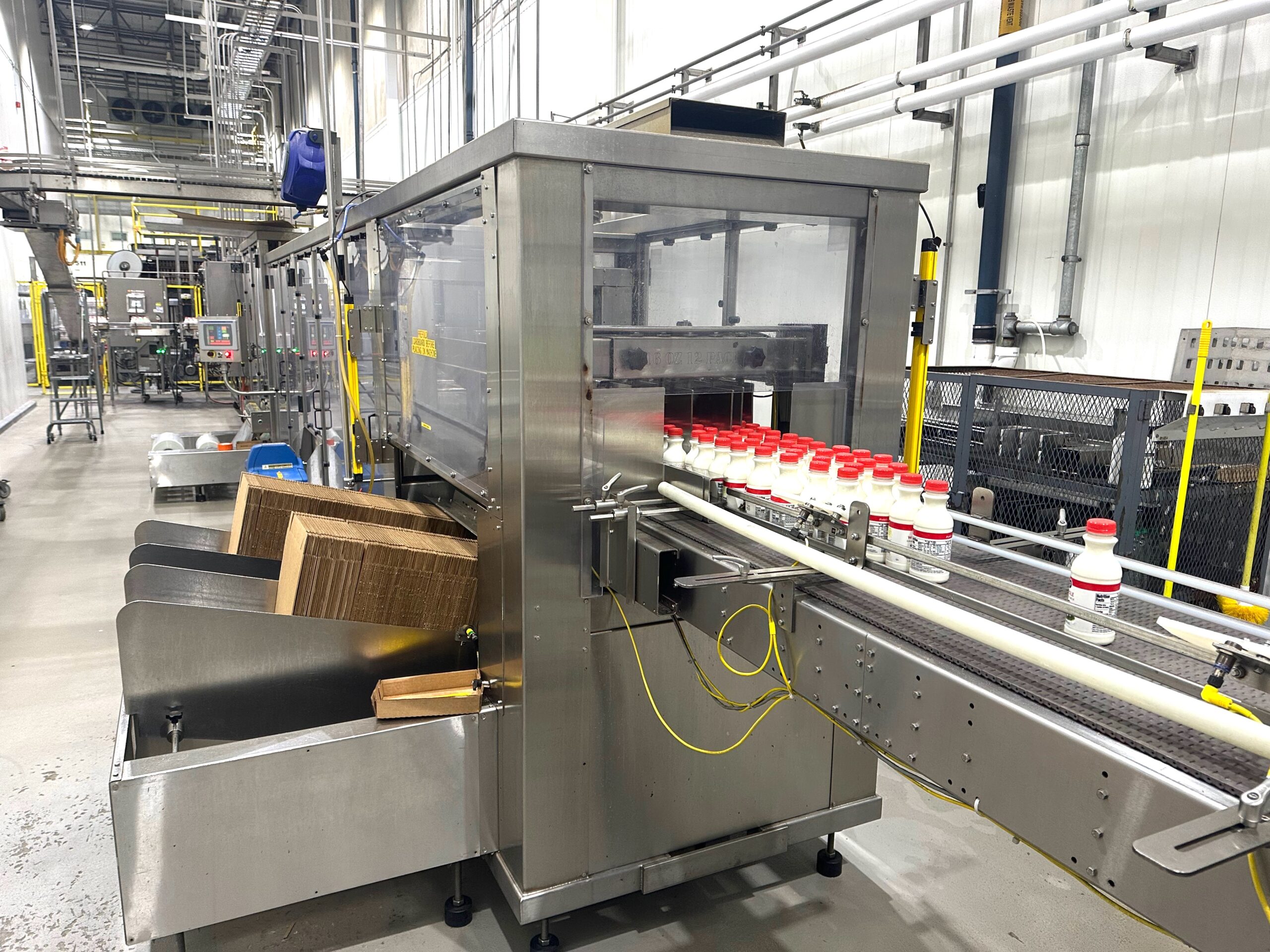

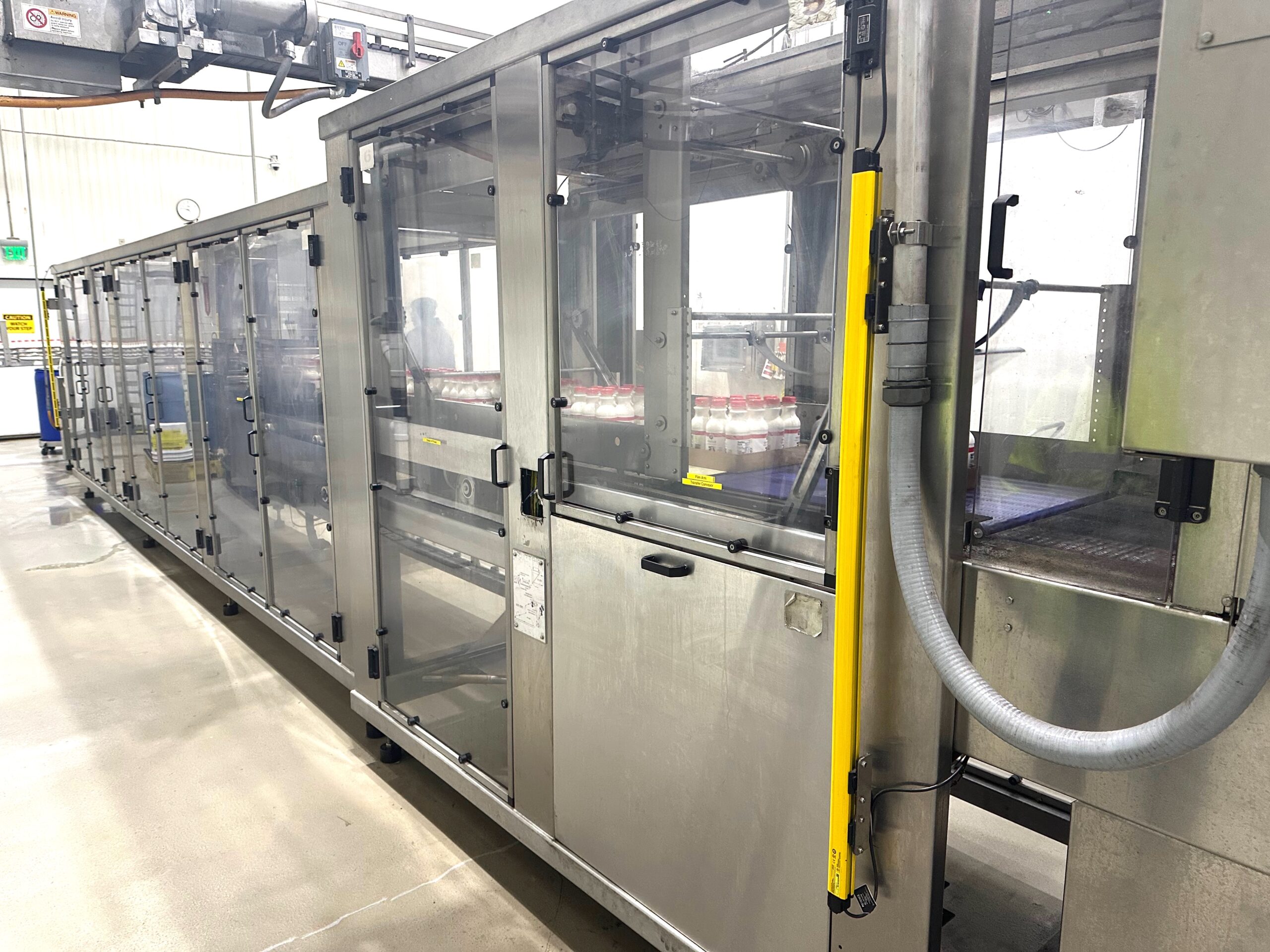

STAINLESS STEEL CONSTRUCTION, Installed in 2015, In Operation till October 2025, Continuous motion tray packer and Shrinkwrapper for PET, Glass Bottles or Canned Product, Will run trays + shrink film, Max Speeds up to 50 Cycles/Minute, See Package Patterns Below, Will function with end slotted trays with 90 Degree corners, Single Roll Shrink Wrapper to run clear or print film registration, Servo Controlled Film Feed Cutting and Wand Wrapping, Infeed/Discharge height of 49 inches, Lexan Guarded Doors with Safety Switches, Control Panel with Allen Bradley Compact Logix PLC with Panelview 1000 Plus Operator touchscreen, Allen Bradley Kinetix Servo Drives, Nordson ProBlue Glue System, 480 Volts, 3 Phase, 60 HZ, Manuals-Documentation Included
Packages Last Ran:

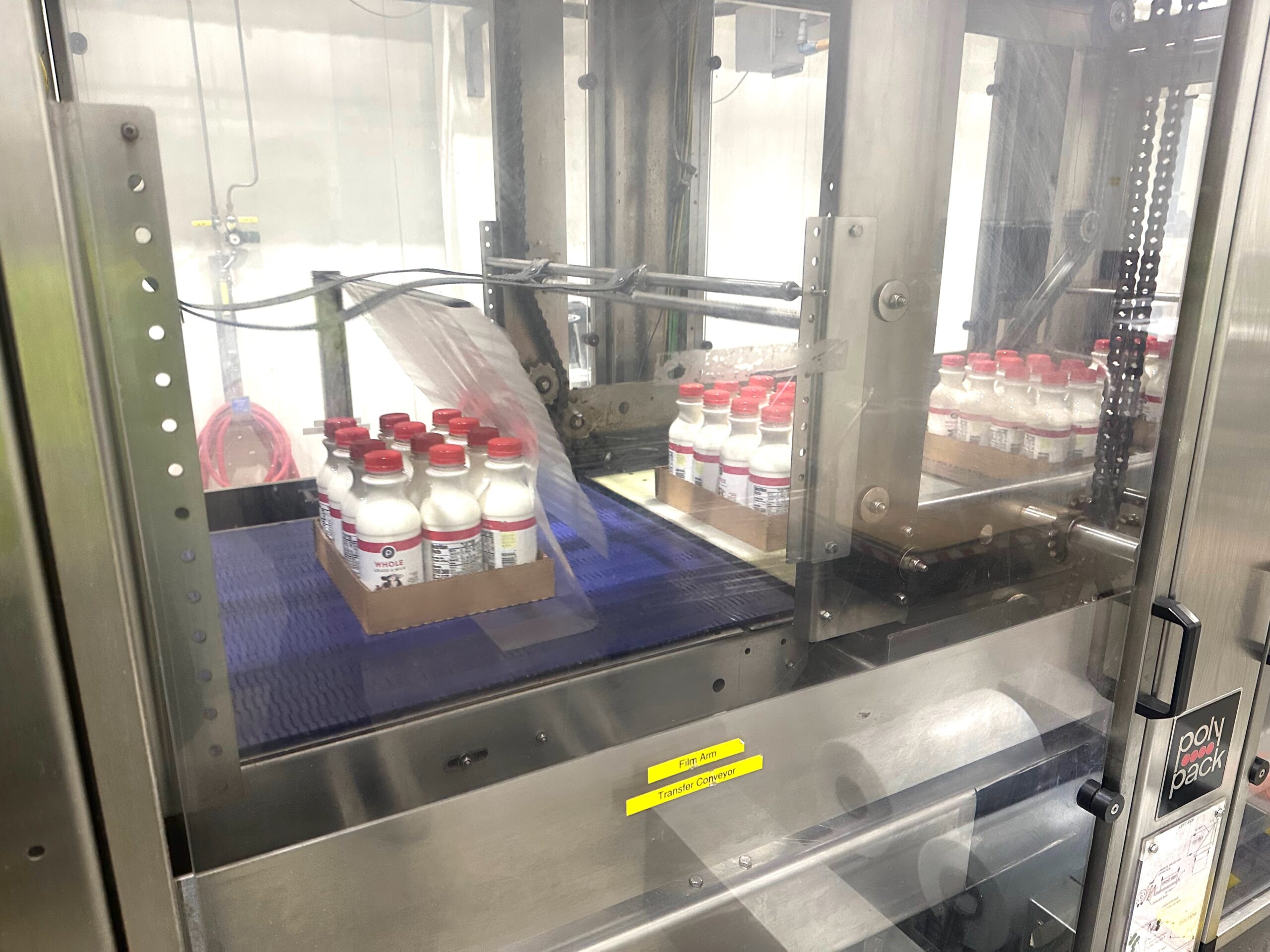

16oz. HDPE Bottles in Tray + Shrink – 6 Packs
16oz. HDPE Bottles in Tray + Shrink – 12 Packs
32oz. HDPE Bottles in Tray + Shrink – 6 Packs
Standard Mins/Maxes are:
Length of Tray (Dimension parallel to flow) 136 – 410 mm
Width of Tray (Dimensions perpendicular to flow) 230-515 mm
Download PDF Layout Drawing
